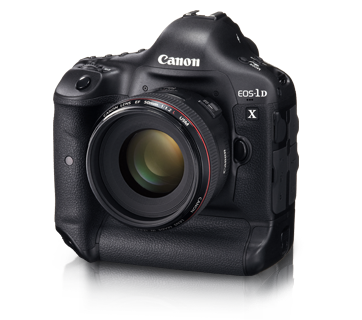

EOS 1D X
- 18.1 MP full frame CMOS sensor
- Up to 12fps plus 14fps High speed mode
- 100-51200 ISO, up to H:204800
- 61 point AF system
- 100,000 pixel RGB AE metering
- Full HD 1080p EOS movie
- Dual “DIGIC 5+” processors
- Clear View II 8.11 cm (3.2”) 1,040k LCD
- Ethernet port
The EOS-1D X combines speed with image quality, to create the next generation camera for professionals. Full frame 18 megapixel sensor with Dual “DIGIC 5+” processors sets the standard, and up to 12 frames per second shooting takes it beyond.
- 18.1 MP full frame CMOS sensor
- Up to 12fps plus 14fps High speed mode
- 100-51200 ISO, up to H:204800
- 61 point AF system
- 100,000 pixel RGB AE metering
- Full HD 1080p EOS movie
- Dual “DIGIC 5+” processors
- Clear View II 8.11 cm (3.2”) 1,040k LCD
- Ethernet port
The EOS-1D X combines speed with image quality, to create the next generation camera for professionals. Full frame 18 megapixel sensor with Dual “DIGIC 5+” processors sets the standard, and up to 12 frames per second shooting takes it beyond.
EOS 1D X Features
18.1 MP full frame CMOS sensor
A Canon 18.1 MP full frame CMOS sensor delivers stunning performance, producing exceptional low noise, high-resolution images even in the darkest conditions. The full frame sensor delivers optimum results from wide-angle lenses and gives you greater control over depth of field. Image resolution exceeds the quality demanded by leading photo agencies - making it ideal for extra large prints up to A2 size, even after cropping.
Super high speed shooting
Capture every second of the action with up to 12fps continuous shooting, increasing to an incredible 14fps in Super High speed shooting with continuous bursts of up to 120 large JPEG images (36 RAW).
Huge ISO range
An exceptionally wide ISO range of 100 to 51200 – expandable up to an incredible ISO 204800 – means shooting need never stop from the brightest conditions right through to near darkness.
61 point AF system
A high-precision 61 point AF system, featuring 41 high sensitivity cross type sensors, delivers fast, accurate focussing of fast moving subjects – whatever the lighting conditions. The centre 5 AF points are dual cross type for added precision.
Consistent, accurate metering
A 100,000 pixel RGB AE metering system with a dedicated DIGIC 4 processor measures not only brightness but also colour to ensure highly accurate exposure for natural results even in complex lighting situations.
Full HD EOS movies
Shoot Full HD (1080p) video with a wide range of user selectable controls on a DSLR including exposure, frame rates, audio and compression control. An HDMI output allows High Definition playback of footage and images.
Dual “DIGIC 5+” processors
Canon’s latest generation Dual “DIGIC 5+” processors deliver the fastest and most advanced image processing to date for best-in-class image quality. Working with 4 A/D converters to provide 14-bit image processing for smooth tonal gradations and natural looking colours as well as advanced Noise Reduction at higher ISO speeds.
Large, anti-reflective LCD
A high-resolution 1,040k-dot 3.2” Clear View II LCD screen, allows easy, accurate review of images and video. Superbly durable, an anti-reflective, hardened glass structure prevents reflections even in the brightest sunlight.
Ethernet port
A built in Ethernet port allows for fast, easy transfer of images directly to a PC or via a network to clients from live events.
EOS 1D X Specification
| Type | ||
| Type | Digital, single-lens reflex, AF/AE camera | |
| Recording media | Type I or II CF card, UDMA mode 7-compatible * Dual CF card slots |
|
| Image sensor size | Approx. 36 x 24mm | |
| Compatible lenses | Canon EF lenses (except EF-S lenses) (35 mm-equivalent lens focal length will be as indicated on the lens) |
|
| Lens mount | Canon EF mount | |
| Image Sensor | ||
| Type | CMOS sensor | |
| Effective pixels | Approx. 18.10 megapixels | |
| Aspect ratio | 3:2 | |
| Dust delete feature | Auto, manual, dust delete data appending | |
| Recording System | ||
| Recording format | Design rule for Camera File System 2.0 | |
| Image type | JPEG, RAW (14-bit Canon original), RAW+JPEG simultaneous recording enabled | |
| Recorded pixels | L (Large) | Approx. 17.90 megapixels (5184 x 3456) |
| M1 (Medium1) | Approx. 14.20 megapixels (4608 x 3072) | |
| M2 (Medium2) | Approx. 8.00 megapixels (3456 x 2304) | |
| S (Small) | Approx. 4.50 megapixels (2592 x 1728) | |
| RAW | Approx. 17.90 megapixels (5184 x 3456) | |
| M-RAW | Approx. 10.10 megapixels (3888 x 2592) | |
| S-RAW | Approx. 4.50 megapixels (2592 x 1728) | |
| JPEG quality | 10 levels | |
| Recording function | Standard, Auto switch card, Record separately, Record to multiple | |
| Create / select a folder | Possible | |
| File name | Preset code, User setting 1, User setting 2 | |
| File numbering | Continuous, Auto reset, Manual reset | |
| Image Processing During Shooting | ||
| Picture Style | Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Def. 1 - 3 | |
| White balance | Auto, Preset (Daylight, Shade, Cloudy, Tungsten light, White fluorescent light, Flash), Custom, Color temperature setting (Approx. 2500-10000K), Personal white balance (5 settings), White balance correction and White balance bracketing possible * Flash color temperature information transmission enabled |
|
| Noise reduction | Applicable to long exposures and high ISO speed shots | |
| Automatic image brightness correction | Auto lighting optimizer | |
| Highlight tone priority | Provided | |
| Lens aberration correction | Peripheral illumination correction, chromatic aberration correction | |
| Viewfinder | ||
| Type | Eye-level pentaprism | |
| Coverage | Vertical / horizontal approx. 100% (with eye point approx. 20mm) | |
| Magnification | Approx. 0.76x (-1m-1 with 50mm lens at infinity) | |
| Eyepoint | Approx. 20mm (from eyepiece lens center at -1m-1) | |
| Built-in dioptric adjustment | Approx. -3.0 - +1.0m-1 (dpt) | |
| Eyepiece shutter | Built-in | |
| Focusing screen | Ec-C V provided, interchangeable | |
| AF status indicator | Provided | |
| Grid display | Provided | |
| Electronic level | Horizontal: | 1° increments, ±6° |
| Vertical: | 1° increments, ±4° | |
| * During horizontal shooting | ||
| Mirror | Quick-return type | |
| Depth-of-field preview | Provided | |
| Autofocus | ||
| Type | TTL secondary image-registration, phase detection | |
| AF points | 61 points (Up to 41 cross-type points) * Number of available AF points and cross-type points vary depending on the lens. |
|
| Focusing brightness range | EV -2 – 18 (with center f/2.8 AF point, at 23°C / 73°F, ISO 100) | |
| Focus modes | One-Shot AF, AI Servo AF, Manual focusing (MF) | |
| AF area selection modes | Single-point Spot AF (manual selection), Single-point AF (manual selection), AF point expansion (manual selection; up, down, left and right), AF point expansion (manual selection; surround), Zone AF (manual selection), Auto selection of 61 AF points | |
| AF point automatic selection conditions | Depending on EOS iTR AF setting (AF using color and face detection information possible) *iTR: Intelligent Tracking and Recognition |
|
| AF Configuration tool | Case 1 - 6 | |
| AI Servo characteristics | Tracking sensitivity, Acceleration / deceleration tracking, AF point auto switching | |
| AF fine adjustment | AF Microadjustment (All lenses by same amount or Adjust by lens) | |
| AF-assist beam | Emitted by the EOS-dedicated external Speedlite | |
| Exposure Control | ||
| Metering modes | Approx. 100,000-pixel RGB metering sensor and 252-zone TTL metering at max. aperture EOS iSA (Intelligent Subject Analysis) system • Evaluative metering (linked to all AF points) • Center-weighted average metering |
|
| Metering Range | EV 0 - 20 (at 23°C / 73°F with EF50mm f/1.4 USM lens, ISO 100) | |
| Exposure control | Program AE, Shutter-priority AE, Aperture-priority AE, Manual exposure, Bulb exposure | |
| ISO speed (recommended exposure index) | Auto ISO, manually settable within ISO 100 – 51200 (1/3-stop or whole-stop increments) and expandable to L (ISO 50), H1 (ISO 102400), H2 (ISO 204800) | |
| ISO speed settings | ISO speed range, Auto ISO range and Auto ISO minimum shutter speed settable | |
| Exposure compensation | Manual | ±5 stops in 1/3- or 1/2-stop increments |
| AEB | ±3 stops in 1/3- or 1/2-stop increments (Can be combined with manual exposure compensation) |
|
| AE lock | Auto | Applied in One-Shot AF mode with evaluative metering when focus is achieved |
| Manual | By AE lock button | |
| Standard exposure level adjustment | AE microadjustment possible | |
| Multiple Exposures | ||
| Shooting method | Function / control priority, continuous shooting priority | |
| Number of multiple exposures | 2 to 9 exposures | |
| Multiple-exposure control | Additive, average, bright, dark | |
| Shutter | ||
| Type | Electronically-controlled, focal-plane shutter | |
| Shutter Durability* | 400,000 cycles | |
| Shutter Speeds | 1/8000sec. to 30secs., bulb (Total shutter speed range. Available range varies by shooting mode.), X-sync at 1/250 sec. | |
| Drive System | ||
| Drive modes | Single, High-speed continuous, Low-speed continuous, 10-sec. self-timer, 2-sec. self-timer, Silent single shooting, Super high-speed continuous | |
| Continuous shooting speed | Super high-speed continuous shooting: | Max. approx. 14 shots/sec. |
| High-speed continuous shooting: | Max. approx. 12 shots/sec. | |
| Low-speed continuous shooting: | Max. approx. 3 shots/sec. | |
| * When the ISO speed is set to 32000 or higher, the maximum continuous shooting speed will be approx. 10fps. | ||
| External Speedlite | ||
| Compatible Speedlites | EX-series Speedlites | |
| Flash metering | E-TTL II autoflash | |
| Flash exposure compensation | ±3 stops in 1/3- or 1/2-stop increments | |
| FE lock | Provided | |
| PC terminal | Provided | |
| Standard flash exposure level adjustment | FE Microadjustment possible | |
| External Speedlite control | Provided | |
| Live View Shooting | ||
| Shooting modes | Live mode, face detection live mode (contrast detection), quick mode (phase-difference detection), manual focusing (approx. 5x / 10x magnification possible) | |
| Focusing brightness range | EV 1 - 20 (with contrast detection, at 23°C / 73°F, ISO 100) | |
| Metering modes | Evaluative metering with the image sensor | |
| Metering range | EV 0 - 20 (at 23°C / 73°F with EF50mm f/1.4 USM lens, ISO 100) | |
| Silent shooting | Provided (Mode 1 and 2) | |
| Grid display | Three types | |
| Movie Shooting | ||
| Movie recording compression | MPEG-4 AVC / H.264 Variable (average) bit rate | |
| Audio recording format | Linear PCM | |
| Recording format | MOV | |
| Recording size and frame rate | 1920 x 1080 (Full HD): | 30p / 25p / 24p |
| 1280 x 720 (HD): | 60p / 50p | |
| 640 x 480 (SD): | 30p / 25p | |
| 30p: 29.97fps, 25p: 25.00fps, 24p: 23.976fps, *60p: 59.94fps, 50p: 50.00fps |
||
| Compression method | ALL-I (I-only), IPB | |
| File size | 1920 x 1080 (30p / 25p / 24p) / IPB | Approx. 235MB/min. |
| 1920 x 1080 (30p / 25p / 24p) / ALL-I | Approx. 685MB/min. | |
| 1280 x 720 (60p / 50p) / IPB | Approx. 205MB/min. | |
| 1280 x 720 (60p / 50p) / ALL-I | Approx. 610MB/min. | |
| 640 x 480 (30p / 25p) / IPB | Approx. 45MB/min. | |
| * Card reading / writing speed necessary for movie shooting: IPB: at least 10MB per sec. /ALL-I: at least 30MB per sec. |
||
| Focus modes | Same as focusing with Live View shooting | |
| Metering modes | Center-weighted average and Evaluative metering with the image sensor * Automatically set by the focus mode. |
|
| Metering range | EV 0 - 20 (at 23°C / 73°F with EF50mm f/1.4 USM lens, ISO 100) | |
| Exposure control | 1. Autoexposure 2. Shutter-priority AE 3. Aperture-priority AE 4. Manual exposure * With 1, 2 and 3, exposure compensation and AE lock are possible. |
|
| Exposure compensation | 1/3-stop increments, ±3 stops (±5 stops for still photos) | |
| ISO speed: (Recommended exposure index) |
P, Av and BULB: Automatically set within ISO 100 - 25600, expandable to H (equivalent to ISO 51200), H1 (equivalent to ISO 102400), H2 (equivalent to ISO 204800) Tv: Automatically set within ISO 100 – 25600 M: Auto ISO (automatically set within ISO 100 - 25600), ISO 100 - 25600 set manually (in 1/3- or whole-stop increments), expandable to H (equivalent to ISO 32000 / 40000 / 51200), H1 (equivalent to ISO 102400), H2 (equivalent to ISO 204800) |
|
| Time code | Supported | |
| Drop frames | Compatible with 60p / 30p | |
| Sound recording | Built-in monaural microphone, external stereo microphone terminal provided Sound recording level adjustable, wind filter provided |
|
| Grid display | Three types | |
| Still photos | Possible | |
| LCD Monitor | ||
| Type | TFT color, liquid-crystal monitor | |
| Monitor size and dots | Wide, 3.2-in. (3:2) with approx. 1.04 million dots | |
| Brightness adjustment | Manual (7 levels) | |
| Electronic level | Horizontal: | 1° increments, ±6° |
| Vertical: | 1° increments, ±4° | |
| Interface languages | 25 | |
| Feature guide | Displayable | |
| Camera System status display | Provided | |
| Playback | ||
| Image display formats | Single image display, Single image + Info display (Basic info, shooting info, histogram), 4-image index, 9-image index display | |
| Highlight alert | Overexposed highlights blink | |
| AF point display | Possible | |
| Grid display | Three types | |
| Zoom magnification | Approx. 1.5x - 10x, starting magnification and position settable | |
| Image browsing methods | Single image, jump by 10 or 100 images, by shooting date, by folder, by movies, by stills, by rating | |
| Image rotate | Possible | |
| Ratings | Provided | |
| Movie playback | Enabled (LCD monitor, video / audio OUT, HDMI OUT) built-in speaker | |
| Slide show | All images, by date, by folder, movies, stills, or by rating | |
| Image protect | Possible | |
| Voice memo | Recording / playback possible | |
| Copying images | Possible | |
| Post-Processing of Images | ||
| In-camera RAW image processing | Brightness correction, White balance, Picture Style, Auto Lighting Optimizer, High ISO speed noise reduction, JPEG image-recording quality, Color space, Peripheral illumination correction, Distortion correction and Chromatic aberration correction | |
| Resize | Possible | |
| Direct Printing | ||
| Compatible printers | PictBridge-compatible printers | |
| Printable images | JPEG and RAW images | |
| Print ordering | DPOF Version 1.1 compatible | |
| Wired LAN | ||
| Standard | IEEE802.3u (Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T) | |
| FTP transfer | Automatic transfer upon shooting Image selection / transfer Transfer with SET button Transfer with caption |
|
| EOS Utility | EOS Utility remote control over wired LAN | |
| WFT server | Camera control / simple control / basic shooting Image viewing / downloading |
|
| Media server | DLNA-compatible | |
| Multi camera time sync function | Master camera can synchronize time with up to 10 slave cameras | |
| Image Transfer | ||
| Transferrable images | Still photos (JPEG, RAW, RAW + JPEG images), movies | |
| Custom Functions | ||
| Custom Functions | 31 | |
| Save camera settings | Up to ten sets can be registered in a card | |
| Custom shooting modes | Register under Mode Dial's C1 / C2 / C3 | |
| My Menu registration | Possible | |
| Copyright information | Entry and inclusion enabled | |
| Interface | ||
| Audio / video OUT / Digital terminal | Analog video (Compatible with NTSC / PAL) / stereo audio output Personal computer communication, direct printing (Hi-Speed USB or equivalent) |
|
| HDMI mini OUT terminal | Type C (Auto switching of resolution), CEC-compatible | |
| External microphone IN terminal | 3.5mm stereo mini-jack | |
| Remote control terminal | Compatible with N3-type remote controller | |
| Ethernet terminal | RJ-45 terminal, gigabit ethernet compatible | |
| System extension terminal | For Wireless File Transmitter WFT-E6 and GPS receiver GP-E1 | |
| Power | ||
| Battery | Battery Pack LP-E4N / LP-E4 (Quantity 1) * AC power can be supplied via AC Adapter Kit ACK-E4 |
|
| Battery information | Remaining capacity, Shutter count and recharge performance displayed | |
| Date/Time battery | CR2025 lithium battery (Quantity 1) | |
| Dimensions and Weight | ||
| Dimensions (W x H x D) | Approx. 158 x 163.6 x 82.7mm / 6.2 x 6.4 x 3.3in. | |
| Operation Environment | ||
| Working temperature range | 0°C - 45°C / 32°F - 113°F | |
| Working humidity | 85% or less | |
| Battery Pack LP-E4N | ||
| Type | Rechargeable lithium-ion battery | |
| Rated voltage | 11.1V DC | |
| Battery capacity | 2450mAh | |
| Dimensions (W x H x D) | Approx. 68.4 x 34.2 x 92.8mm / 2.7 x 1.3 x 3.7in. | |
| Weight | Approx. 185g / 6.5oz. (excluding protective cover) | |
| • | All the data above is based on Canon's testing standards and CIPA (Camera & Imaging Products Association) testing standards and guidelines. |
| • | Dimensions, maximum diameter, length and weight listed above are based on CIPA Guidelines (except weight for camera body only). |
| • | Product specifications and the exterior are subject to change without notice. |
| * | The shutter unit has passed a release test of 400,000 actuations. (The test was conducted internally and based on standard shooting conditions). |
